Ecoflam MULTIFLAM 500.1 PR TC VGD 40.100 oil/gas burner

Ecoflam3143783-3141869

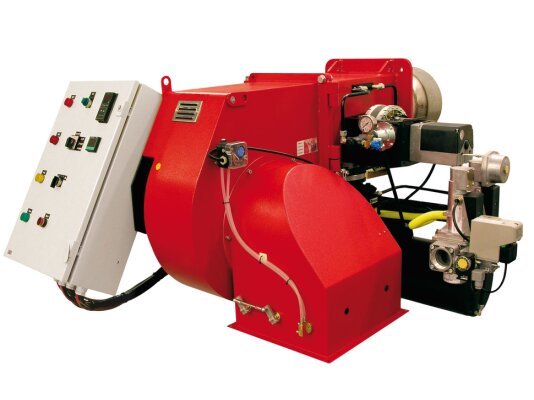

Gas/oil burner Ecoflam MULTIFLAM 500.1 PR TC VGD 40.100, art: 3143783-3141869.

About product

Counterpressure from 0 to 18 mbarBurner power from 1,200 to 5,000 kWElectric motor 11,000 WElectrical power consumption 36,500 WNoise level 91.4 dBOperating temperature from -10 to 60 °C

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3143783-3141869Counterpressure: from 0 to 18 mbarBurner power: from 1,200 to 5,000 kWElectric motor: 11,000 WElectrical power consumption: 36,500 WNoise level: 91.4 dBOperating temperature: from -10 to 60 °CFuel consumption: 105 - 440 kg/hThe length of the flame pipe: 354 mmBurner type: комбинированнаяDegree of protection: IP55Included accessories: with a combustion head / with a gas rampVoltage: 220 V / 380 VFlame pipe type: shortFuel type: gas/fuel oilBurner type: progressive-mechanicalNominal diameter: DN 100

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Packaging information

Width, cm:: 135.8
Height, cm:: 93.5
Length, cm:: 158.4
