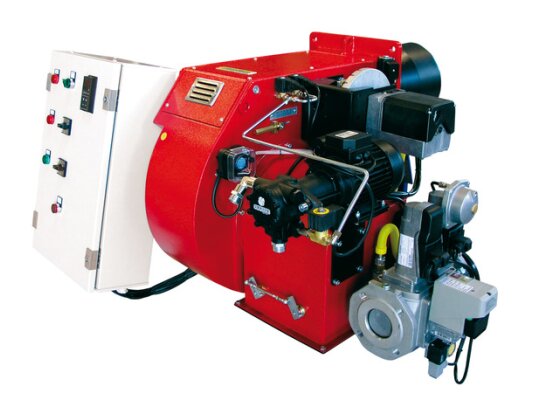

Ecoflam MULTICALOR 600.1 PRE TL VGD 40.100 gas-diesel burner

Ecoflam3145151-3145817

About product

The length of the flame pipe 555 mmBurner power from 1,500 to 5,800 kWRamp gas pressure from 22.5 to 55 mbarFuel consumption 126 - 490 kg/hElectric motor 15,000 WElectrical power consumption 17,500 W

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3145151-3145817The length of the flame pipe: 555 mmBurner power: from 1,500 to 5,800 kWRamp gas pressure: from 22.5 to 55 mbarFuel consumption: 126 - 490 kg/hElectric motor: 15,000 WElectrical power consumption: 17,500 WNoise level: 92.8 dBOperating temperature: from -10 to 60 °CCounterpressure: from 0 to 20 mbarBurner type: комбинированнаяDegree of protection: IP55Included accessories: with a combustion head and with a gas rampVoltage: 220 V / 380 VFlame pipe type: extendedFuel type: gas/dieselBurner type: electronically modulatedNominal diameter: DN 100

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Packaging information

Width, cm:: 123
Height, cm:: 73
Length, cm:: 155.5
