Ecoflam MULTICALOR 300.1 PR TL VGD 40.080 gas-oil burner

Ecoflam3146046-3146006

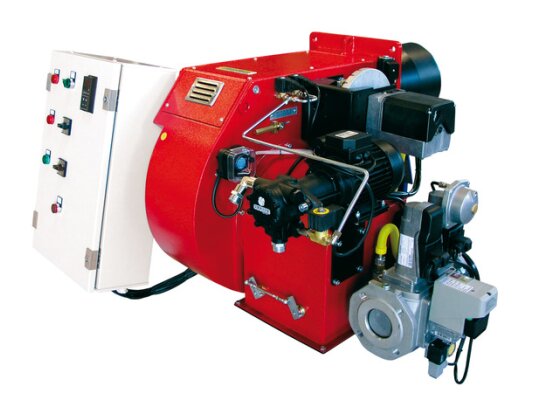

Ecoflam MULTICALOR 300.1 PR TL VGD 40.080 gas/diesel burner, art: 3146046-3146006.

About product

The length of the flame pipe 530 mmFlame pipe diameter 290 mmRamp gas pressure from 8.5 to 25.5 mbarCounterpressure from 0 to 13 mbarOperating temperature from -10 to 60 °CNoise level 87.3 dB

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3146046-3146006The length of the flame pipe: 530 mmFlame pipe diameter: 290 mmRamp gas pressure: from 8.5 to 25.5 mbarCounterpressure: from 0 to 13 mbarOperating temperature: from -10 to 60 °CNoise level: 87.3 dBElectrical power consumption: 8,250 WElectric motor: 5,500 WBurner power: from 630 to 3,000 kWBurner type: комбинированнаяDegree of protection: IP55Included accessories: with a combustion head and with a gas rampVoltage: 220 V / 380 VFlame pipe type: extendedFuel type: gas/dieselBurner type: progressive-mechanicalNominal diameter: DN 80

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Analogues

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Packaging information

Width, cm:: 123
Height, cm:: 55.5
Length, cm:: 144.5
