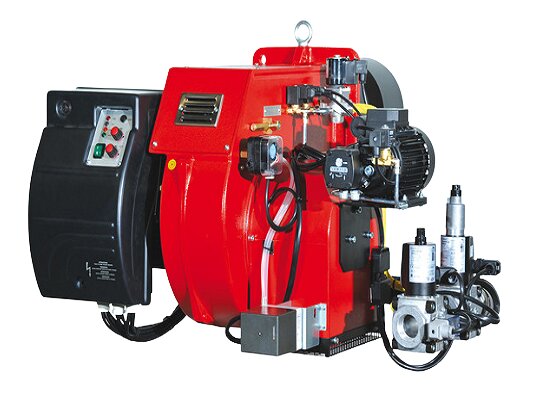

Ecoflam MULTICALOR 200.1 PR-AB TC VGD 40.080 gas-oil burner

Ecoflam3142640-3142026

Ecoflam MULTICALOR 200.1 PR-AB TC VGD 40.080 gas/diesel burner, art: 3142640-3142026.

About product

The length of the flame pipe 290 mmFlame pipe diameter 270 mmRamp gas pressure from 4 to 40 mbarCounterpressure from 0 to 11 mbarFuel consumption 35 - 207 kg/hOperating temperature from -10 to 60 °C

Burners for heating boilers

Characteristics

Manufacturer Part Number: 3142640-3142026The length of the flame pipe: 290 mmFlame pipe diameter: 270 mmRamp gas pressure: from 4 to 40 mbarCounterpressure: from 0 to 11 mbarFuel consumption: 35 - 207 kg/hOperating temperature: from -10 to 60 °CElectric motor: 4,000 WGas consumption: from 42 to 216 nm³/hBurner power: from 414 to 2,150 kWBurner type: комбинированнаяFlame pipe type: shortIncluded accessories: with a combustion head and with a gas rampVoltage: 220 V / 380 VFuel type: gas/dieselBurner type: progressive-mechanicalNominal diameter: DN 80

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

Accessories and spare parts

This product is from the collections

Burners for heating boilers

Ecoflam

Brand

Italy — home of the brand

Italy — country of origin

Packaging information

Weight, kg:: 178
Width, cm:: 95
Height, cm:: 55.5
Length, cm:: 106
